Spining Jig For Wooden Arrow Shafts – 1/4″ Up To 1/2″ Can Be Tested – READ FULL DISCRIPTION

This spining jig had been made to follow the ATA Standards for working with wooden arrow shafts and all items included follow this.

THIS PRODUCT IS MADE TO ORDER, PLEASE ALLOW 3 TO 4 WEEKS TO MAKE BEFORE SHIPPING.

AVALIABLE TO ORDER VIA THE WEBSITE FOR MAINLAND UK ONLY.

FOR PEOPLE OUT SIDE OF MAINLAND UK / INTERNATIONAL PLEASE SEND AN EMAIL TO [email protected] FOR SHIPPING (POSTAGE & PACKING) PRICES.

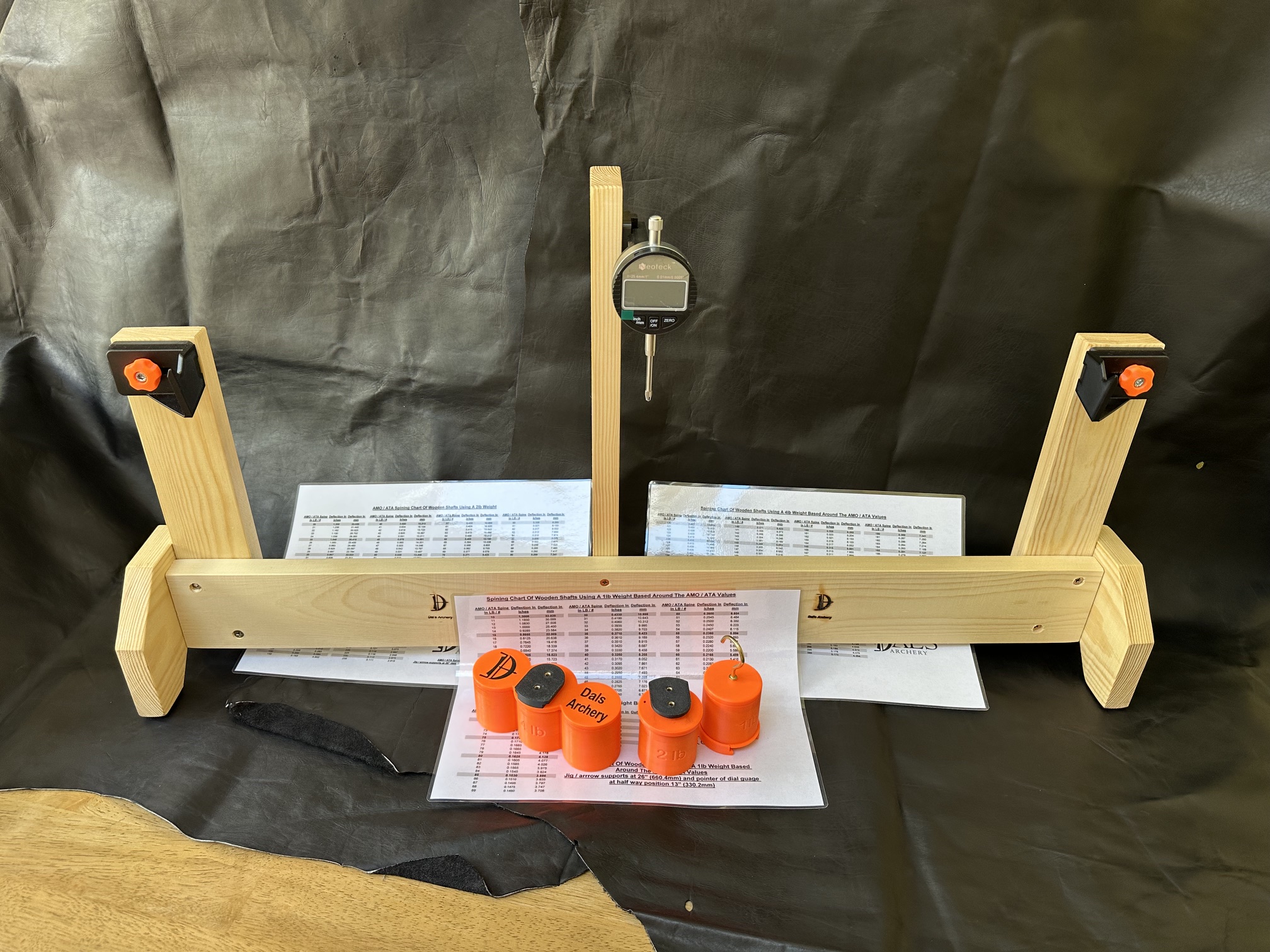

This spining jig is sold as a complete set, in this set is the following;

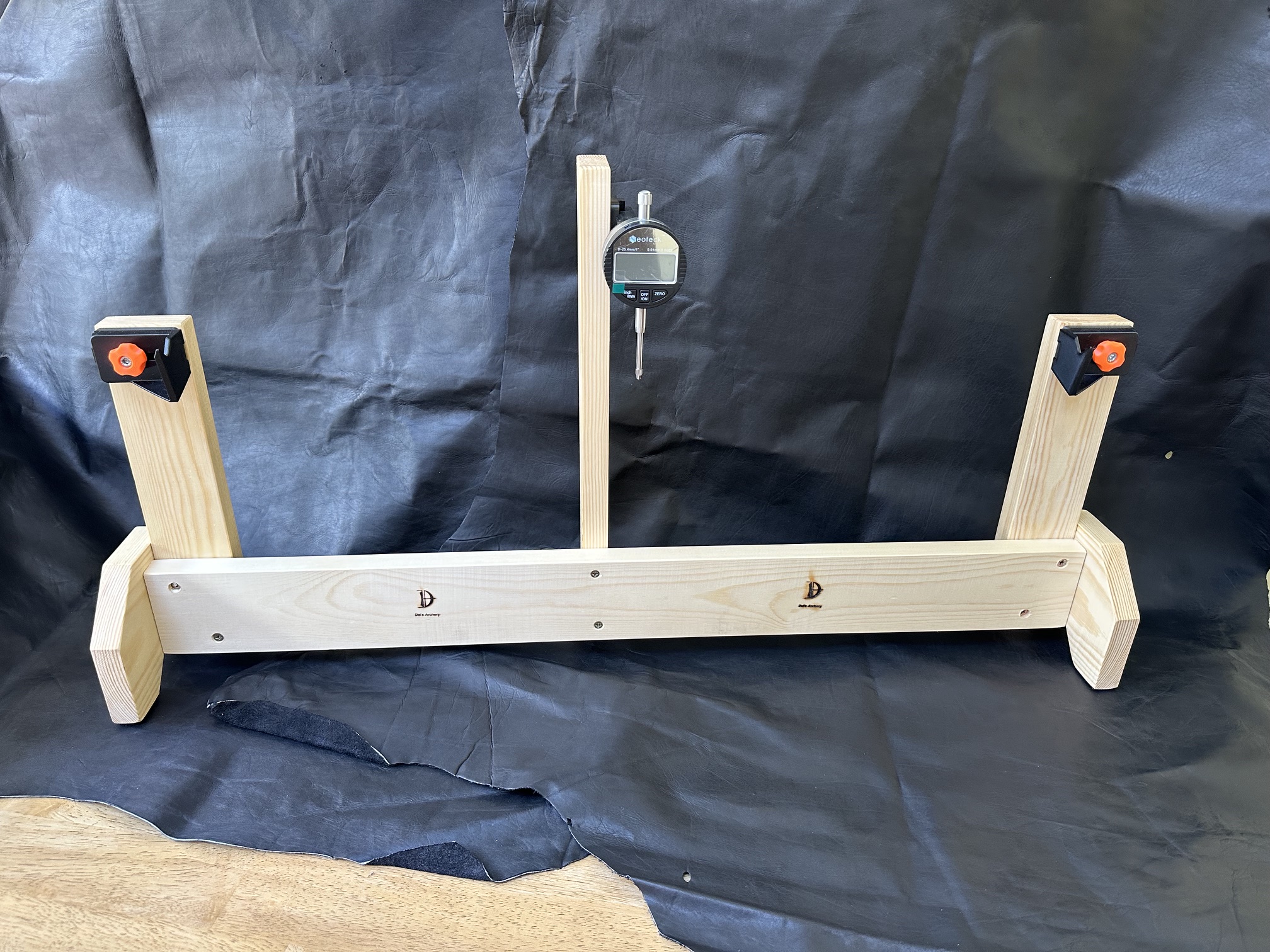

1No. wooden framed jig

2No. arrow holders / mounts

1No. digital dial gauge / indicator with mounting bracket – The gauge measuring length is 25.4mm (1″)

1No. 1lb weight with hanging hook – This weight is for spining light spined arrows 1/4″, 9/32″ and light spined 5/16″ (up to 25lb)

1No. add on weight to the 1lb weight to make it a 2lb weight as per the ATA Standards

1No. add on weight to the 1lb weight to make it a 4lb weight – This is mostly for 1/2″ shafts but also advised to be used on 13/32″ shafts and some of the high spined 3/8″ shafts.

1No. deflection of spine conversion chart when using 1lb weight

1No. deflection of spine conversion chart when using 2lb weight

1No. deflection of spine conversion chart when using 4lb weight
